Radio Wave Beacons (5.8 GHz) / ETC 2.0

Radio beacons (ETC 2.0) are installed mainly on expressways (in approximately 1,800 locations), providing traffic information covering a distance of 1,000 km ahead in the direction of travel along the expressway, as well as information on connecting roads near interchanges and parallel ordinary roads.
The reception range of beacons is about 20 meters in front of and behind the beacon. They mainly provide information about conditions in the direction of travel.

Main Information Provided

  • Congestion Information
    * Expressways and parallel ordinary roads
  • Travel Time Information
    * Between interchanges
  • Traffic Restriction Information
  • Traffic Hindrance Information
  • Information on Service Areas and Parking Areas

Congestion Avoidance Assistance

ITS Spot provides real-time traffic information for expressways that traverse a wide area and cross prefectural boundaries and for expressways in metropolitan areas where multiple routes are possible.
This enables car navigation systems to search for the fastest route and intelligently select the fastest route in accordance with the latest information at any given time.

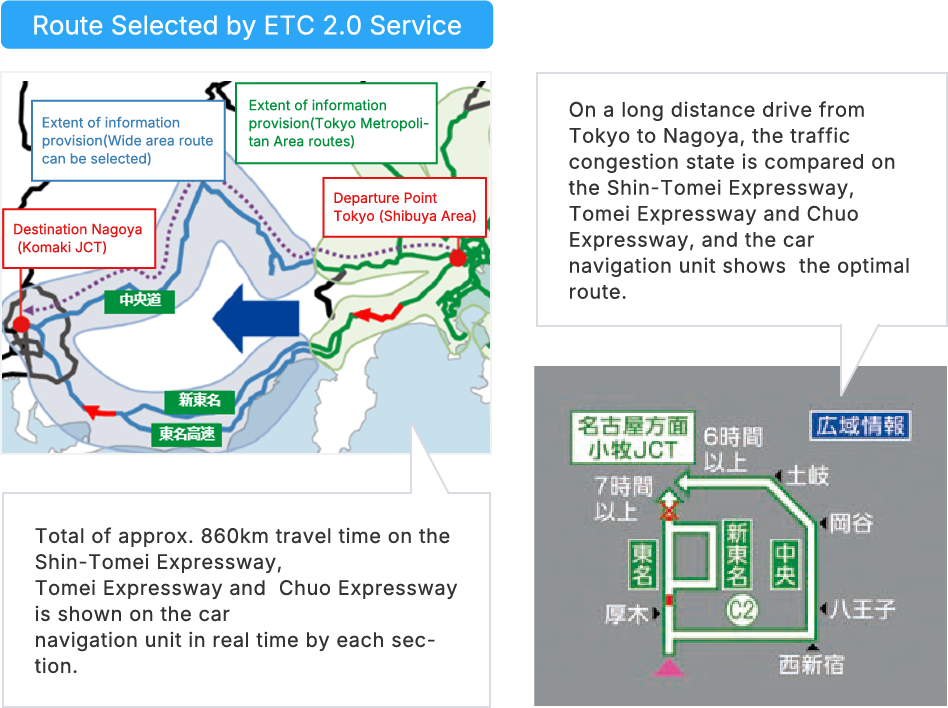

ETC 2.0 service route selection example

Safe Driving Assistance

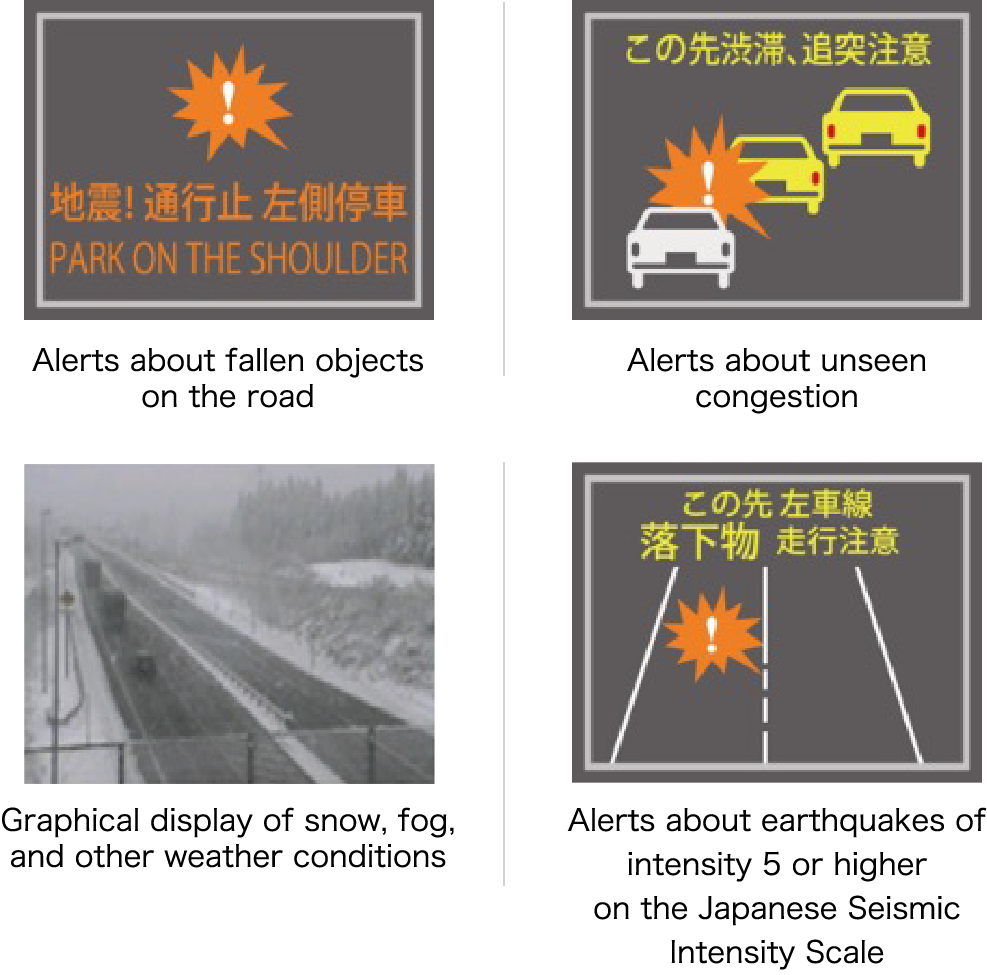

VICS provides advance alerts to reduce close calls during driving.

Alerts about fallen objects on the road, unseen congestion, snow/fog/other weather conditions, and earthquakes of intensity 5 or higher on the Japanese Seismic Intensity Scale
